HONDA WASH SYSTEMS - 2-POST LIFT

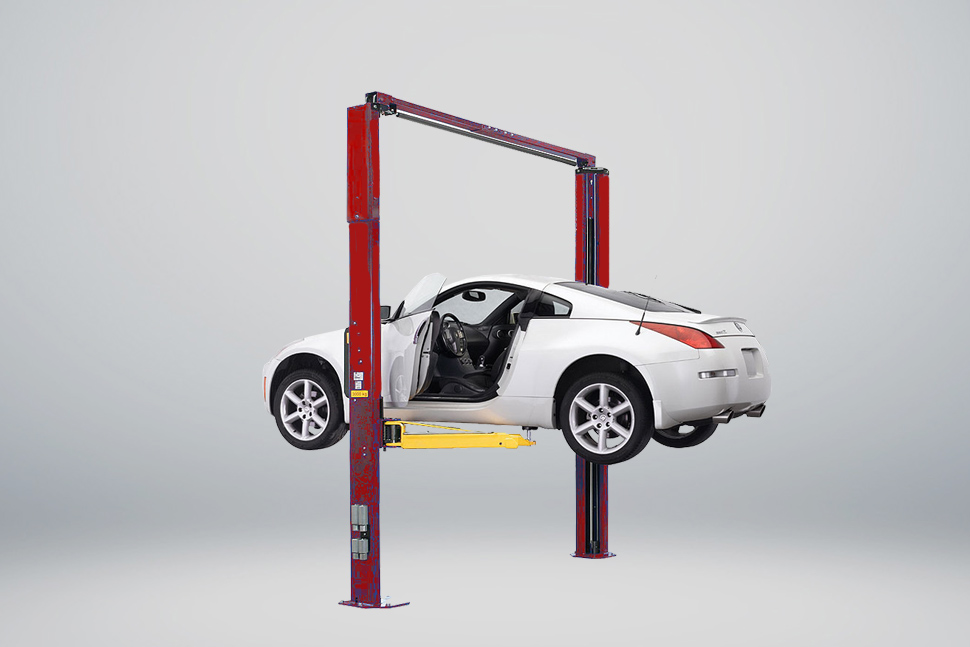

HWS 2-Post lift offers maximum drive-through clearance with minimum external dimensions. The asymmetrical design of the posts and supporting arms also provides a spacious pick-up area, allowing the lift to be entered from either side.

Optional accessories/adapters available with various lift arm configurations. Please contact us for details.


Contact Us to know more about this product by submitting the form below
Specification
Adapters Flip Up, Round, Truck and Frame Available
Capacity 7,000 lbs.
Rise 73 7/8"
Overall Height 11' 8-1/2"
Required Ceiling Height 12'
Overall Width 122.9"
Drive-Thru Width 92"
Front Arm Min/Max 21-5/8"-43-1/2"
Rear Arm Min/Max34-1/2"-58"
Min. Adapter Height3.7"
Motor2 HP
Voltage208v-230v
Time of Full Rise/Decent45 secs.
Min. Bay Size11’ x 24'
